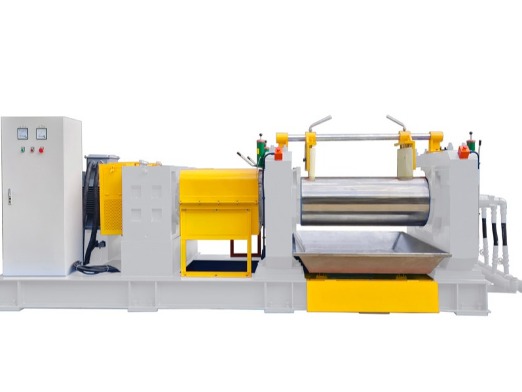

12寸 开放式炼胶机 橡胶开炼机 硅胶开炼机
-
用途：橡胶的塑炼、混炼、热炼和压片等加工工序。
Plasticizing, mixing, hot refining and pressing of rubber and other processing procedures.
-
选配配置：PLC系统程控+按键 液压紧急制动 自动翻胶 电动调距 电动挡板
PLC system programmed control + keypad Hydraulic emergency brake Automatic rubber turning Motorized pitch adjustment Motorized stopper
|
生产能力（KG）Mixing capacity（KG） |
10-15kg |
|
辊筒直径/长度 Roller Diameter/Length |
Φ300×800mm |
|
辊筒材质Roller material |
冷硬合金铸铁 Cold hard alloy cast iron |
|
辊筒表面处理 Roller surface treatment |
表面硬化层深度达 10~15mm |
|
辊筒表面硬度 Roller surface hardness |
HS72~75 |
|
辊筒间距调节 Roller Pitch Adjustment |
0~15mm Motorized |
|
辊筒速比 Roller speed ratio |
1:1.27 速比可定制 Ratio can be customized |
|
辊筒转速 Roller speed |
前辊线速度：15.1M/min 前辊转速：16.1r/min |
|
控温方式 Temperature control mode |
外接循环水 External circulating water |
|
冷却水压力 Cooling water pressure |
0.2-0.4Mpa |
|
主电机 Main motor |
18.5KW |
|
减速机 Reduction gears |
硬齿面 Hard tooth surface |
|
传动方式 Transmission method |
单出轴，右传动 Single outlet shaft, right-hand drive |
|
翻胶装置 Glue turning device |
自动翻胶 选配 Automatic Rubber Turnover |
|
润滑系统 Lubrication system |
循环稀油润滑 选配 Circulating thin oil lubrication |
|
安全装置 Safety device |
快速气动碟刹制动 两边各两个急停开关，总共4个 |
|
挡料板 Blocking plate |
进口MC 含尼龙 Imported MC with nylon |
|
功率 Total Power |
18.5KW |
|
电源 Power Supply |
3∮，AC380V |
|
重量 Weight (ton) |
3000kg |
|
体积约(W×D×H) Dimension |
2750×1235×1845mm |
