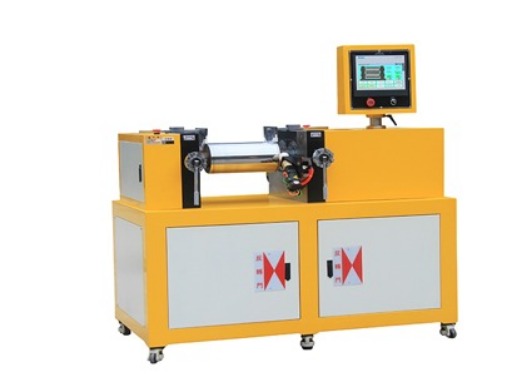

XH-401 PLC系统程控系列 PLC program control series
产品特点 Product Features
PLC控制系统，实验数据实时显示监测，包含温度、转速、电流、计时、计数、数据储存或数据导出；
PLC control system, real-time display and monitoring of test data, including temperature, speed, current, timing, counting, data storage or data export
系统可兼容全自动调距功能、全自动翻胶功能、紧急液压弹开装置；
The system is compatible with automatic gap adjustment function, automatic flipping material function, and emergency hydraulic opening device
详细参数：
|
型号 Model No. |
XH-401A |
XH-401B |
XH-401C |
|
辊筒转速 Roller speed |
定速 Fixed speed |
单调频 Single frequency inverter |
双调频 Dual frequency inverter
|
|
控制方式 Control Mode |
按键式或PLC系统程控 PID control or PLC program control |
||
|
辊筒尺寸 Size of roll |
120×350mm或指定(or customized) |
||
|
加热方式 Heating Mode |
电加热/油加热 electrical heating / oil heating |
||
|
冷却方式 Cooling Mode |
无冷却或自来水冷却（可选配） No cooling or tap water cooling (optional) |
||
|
调距方式 Roll gap adjustment |
手动调节或电动调距 Manual or electric gap adjustment |
||
|
翻胶方式 Flipping material |
手动翻胶或自动翻胶 Manual or automatic flipping |
||
|
安全装置 Safety device |
反转停止或紧急弹开装置 Reverse stop or emergency opening system |
||
|
电机功率 Motor Power |
0.75kw或指定×1台 0.75kW or customized*1 |
0.75kw或指定×2台 0.75kW or customized*2 |
|
|
体积 Volume（W×D×H） |
1100mm×560mm×1150mm |
||
|
重量(kg) Weight |
400kg |
450kg |
|
|
电源 Power Supply |
3∮，AC380V |
3∮，AC380V |
3∮，AC380V |
