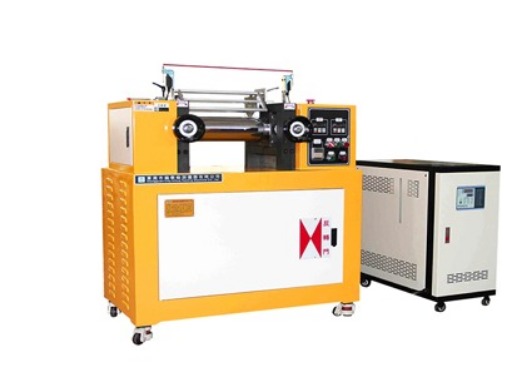

XH-401 油加热系列 Oil heating series
产品特点 Product Features
主要用于PVC、稳定剂、助剂类，热稳定性测试；
Mainly used for PVC, stabilizers, additives, and thermal stability testing
辊筒内部钻孔,外置油热系统，高温油泵将导热油置入,升温速率快，辊筒表面热稳定性好；
Drilled hole inside of the roller, and high-temperature oil pump transfer oil into it. Fast heating rate, Roller surface with good thermal stability.
详细参数：
|
型号 Model No. |
XH-401A |
XH-401B |
XH-401C |
|
辊筒转速 Roller speed |
定速 Fixed speed |
单调频 Single frequency inverter |
双调频 Dual frequency inverter
|
|
控制方式 Control Mode |
按键式或PLC系统程控 PID control or PLC program control |
||
|
辊筒尺寸 Size of roll |
120×350mm或指定(or customized) |
||
|
加热方式 Heating Mode |
电加热/油加热 electrical heating / oil heating |
||
|
冷却方式 Cooling Mode |
无冷却或自来水冷却（可选配） No cooling or tap water cooling (optional) |
||
|
调距方式 Roll gap adjustment |
手动调节或电动调距 Manual or electric gap adjustment |
||
|
翻胶方式 Flipping material |
手动翻胶或自动翻胶 Manual or automatic flipping |
||
|
安全装置 Safety device |
反转停止或紧急弹开装置 Reverse stop or emergency opening system |
||
|
电机功率 Motor Power |
0.75kw或指定×1台 0.75kW or customized*1 |
0.75kw或指定×2台 0.75kW or customized*2 |
|
|
体积 Volume（W×D×H） |
1100mm×560mm×1150mm |
||
|
重量(kg) Weight |
400kg |
450kg |
|
|
电源 Power Supply |
3∮，AC380V |
3∮，AC380V |
3∮，AC380V |
